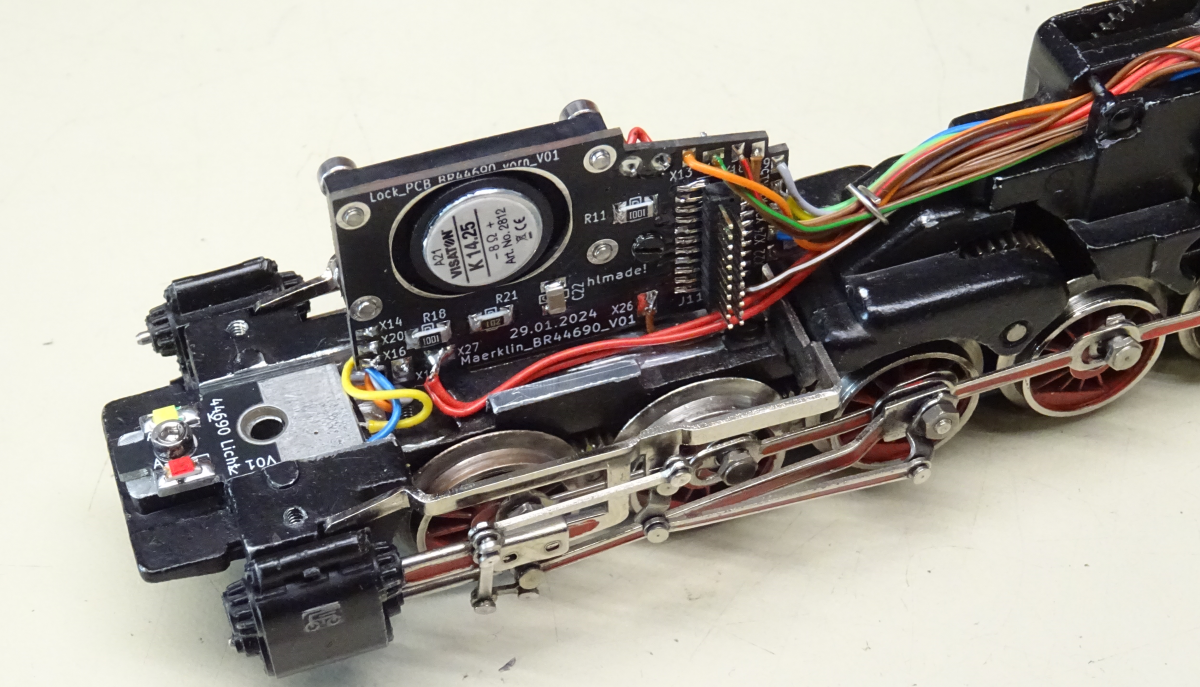

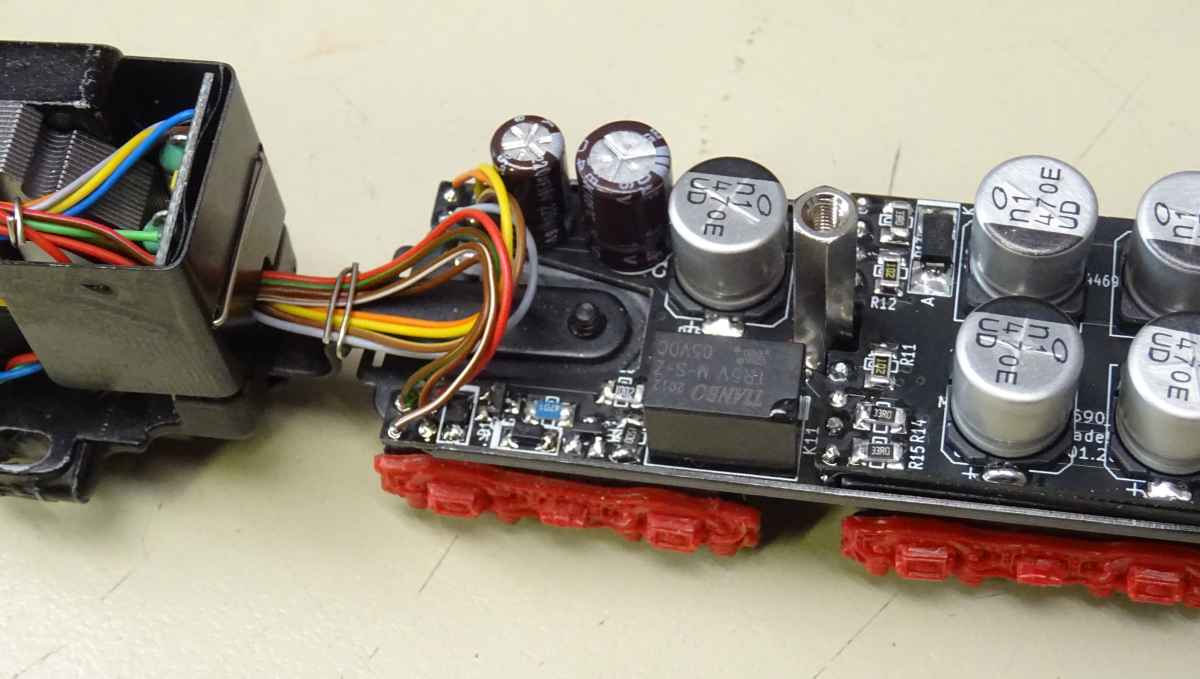

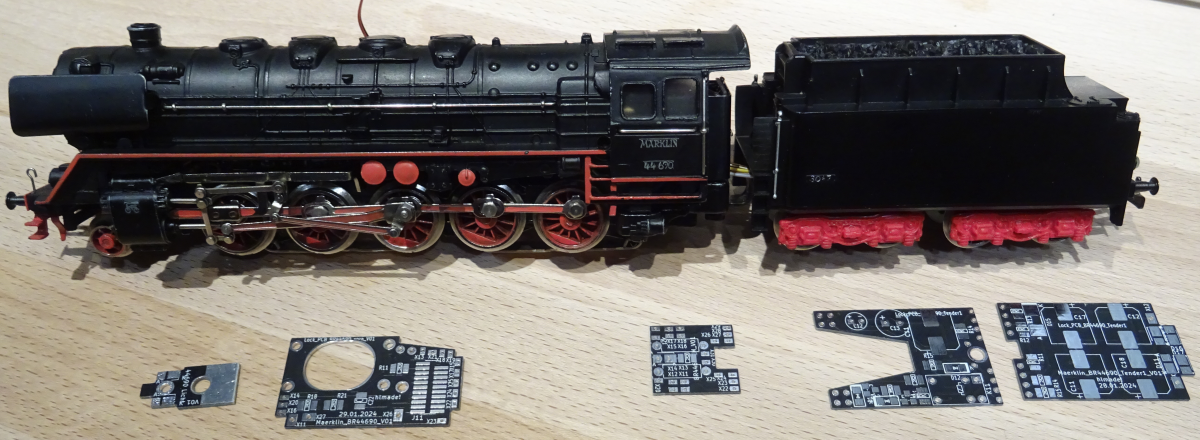

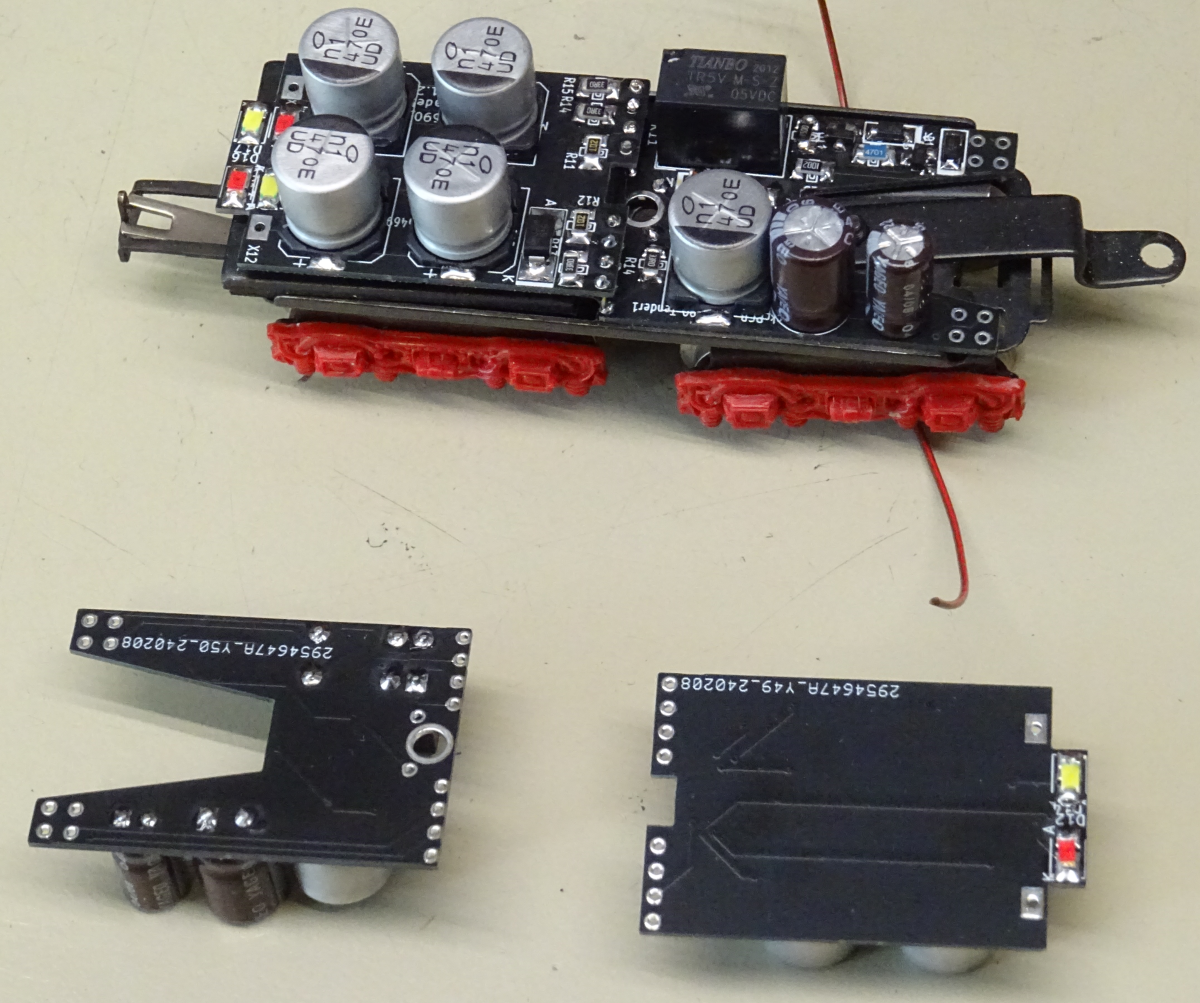

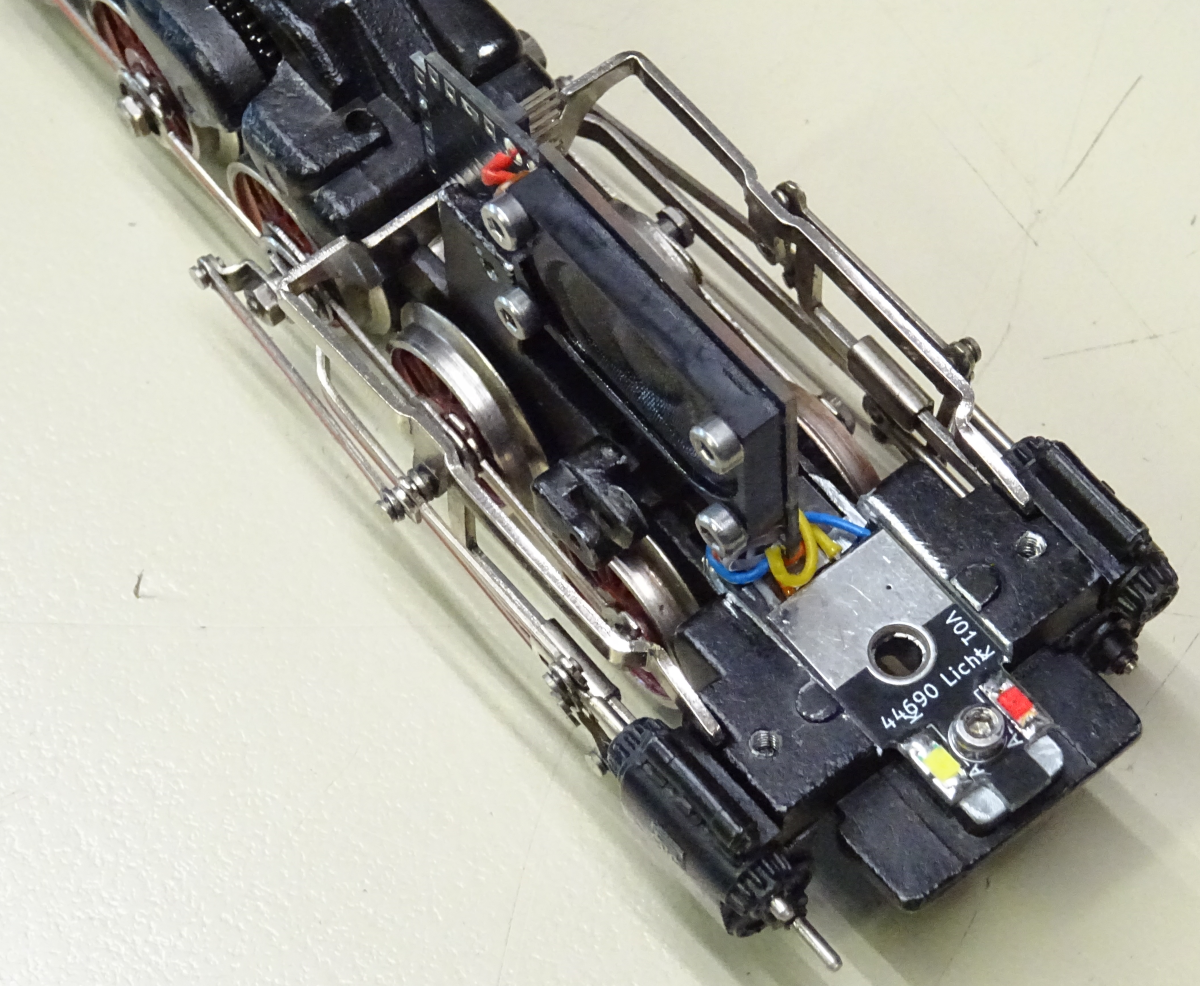

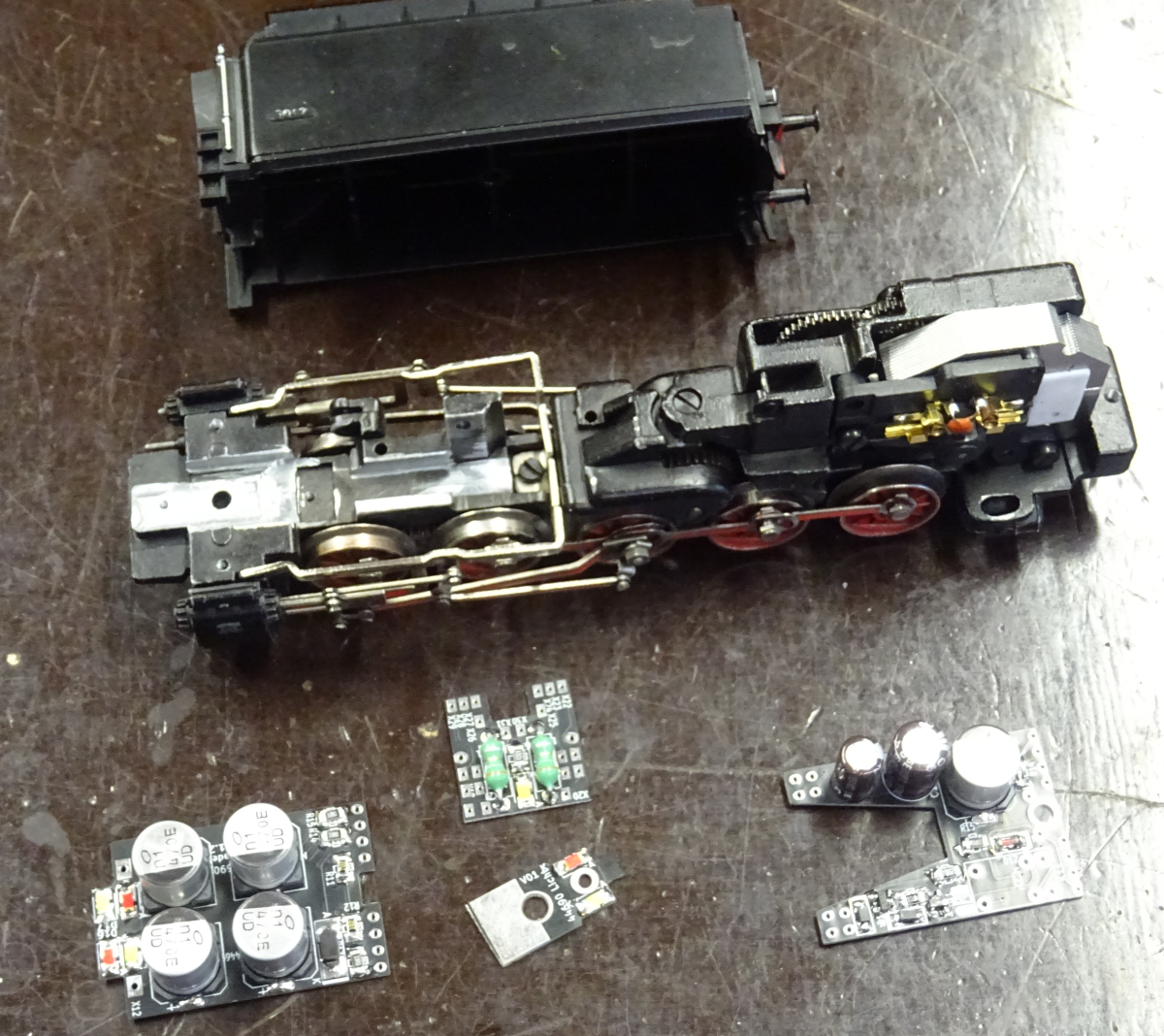

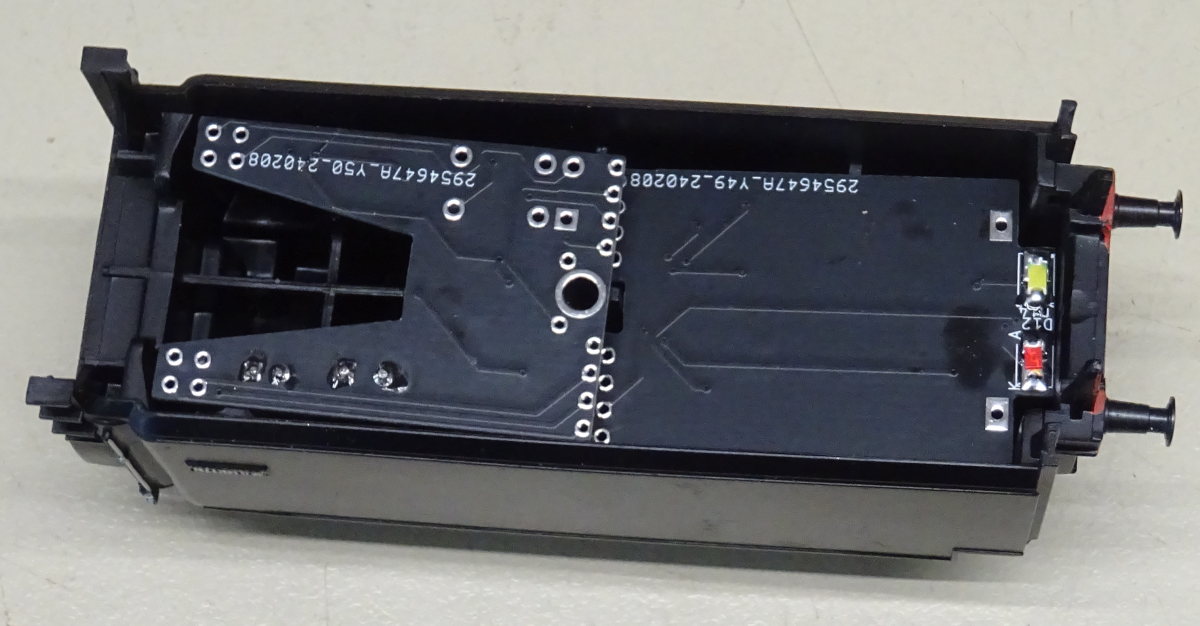

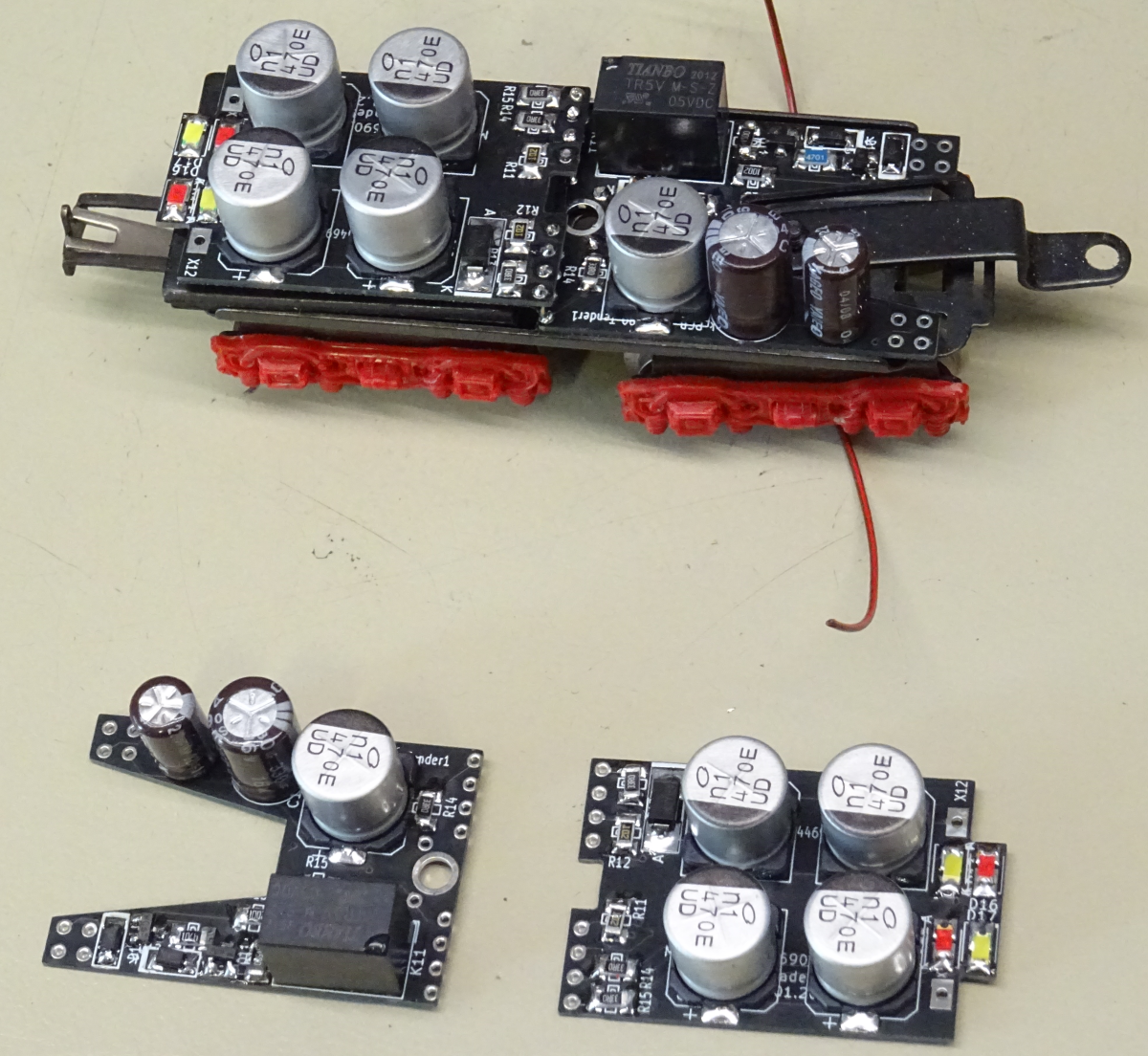

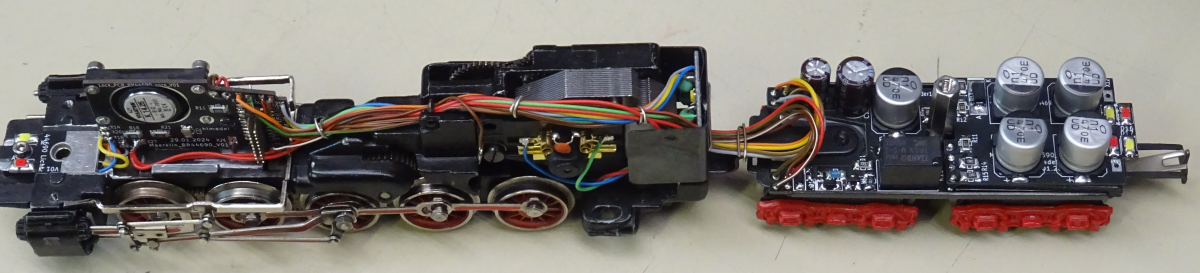

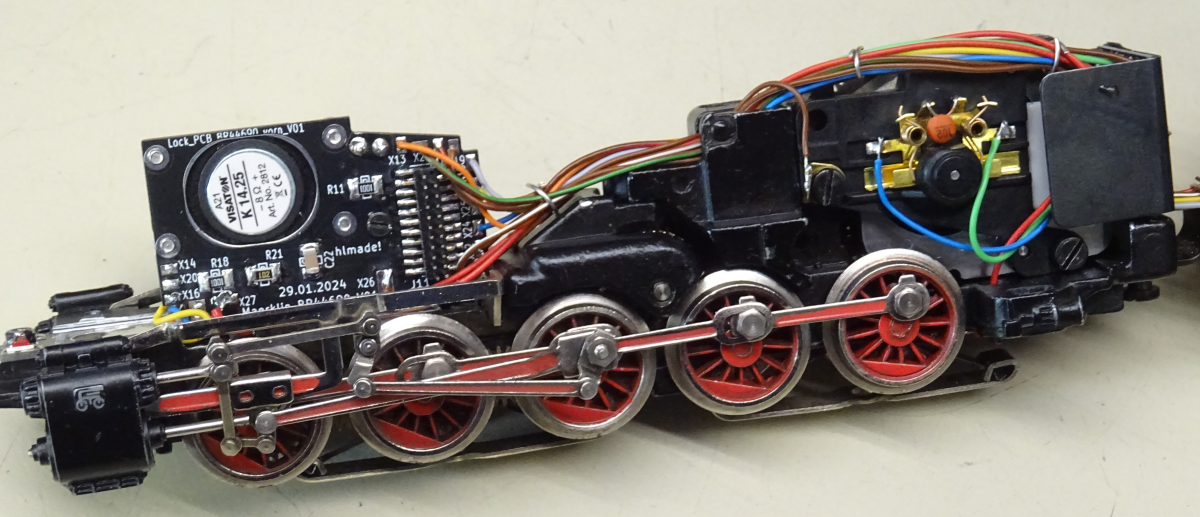

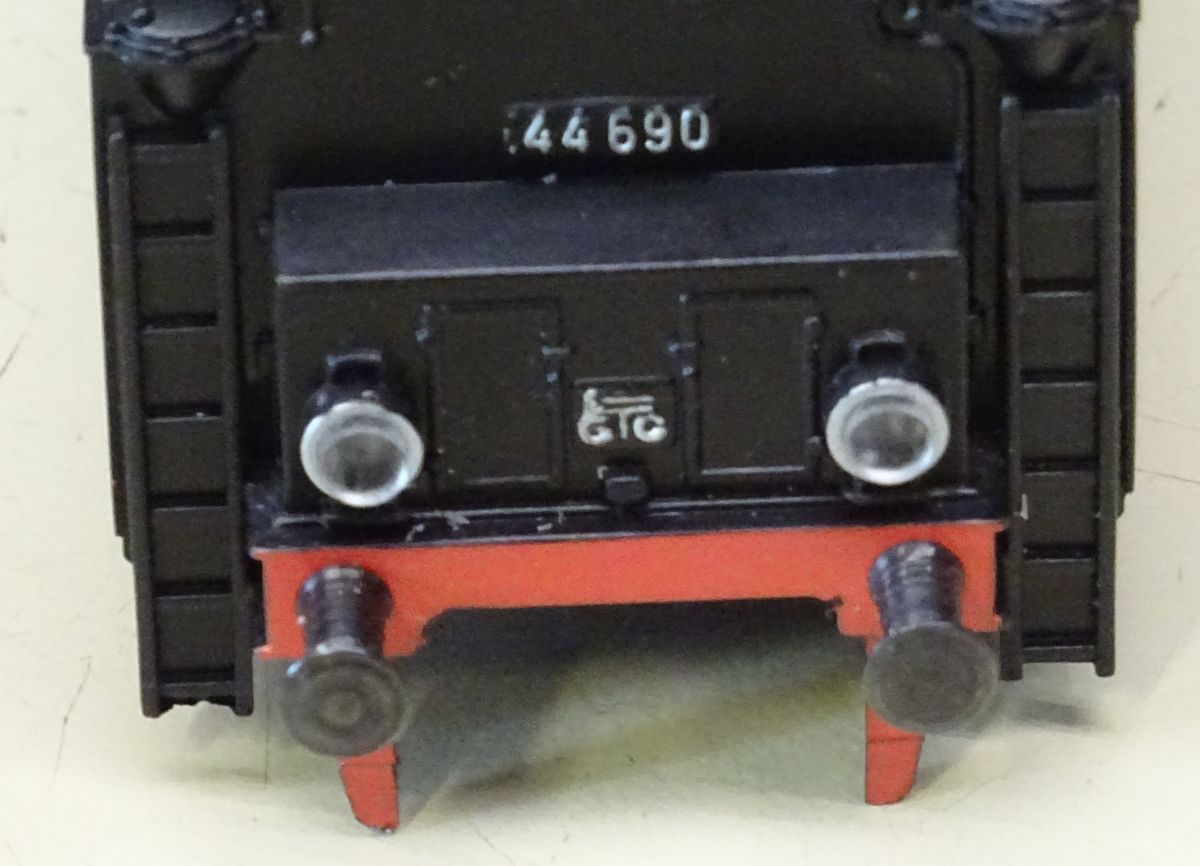

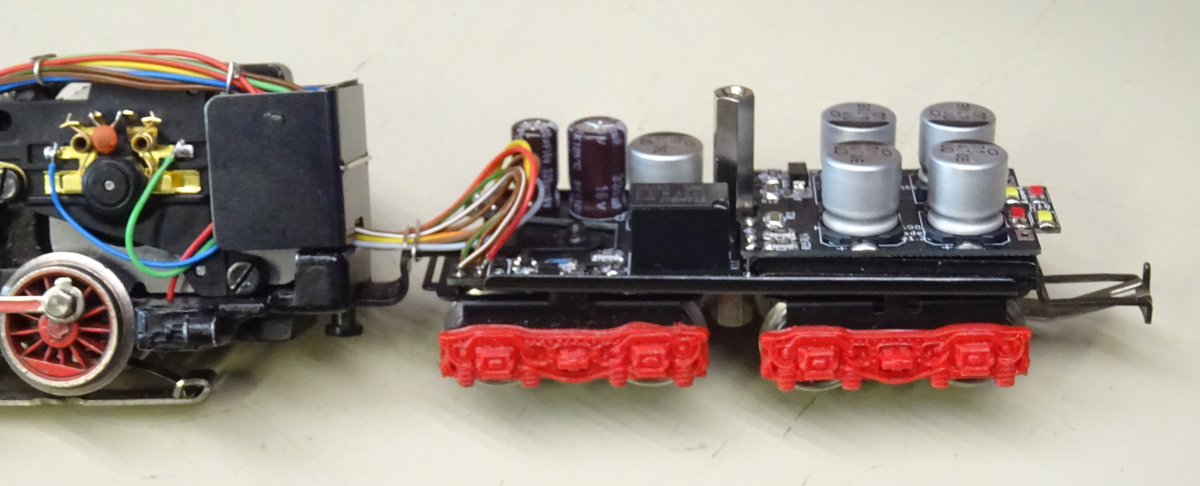

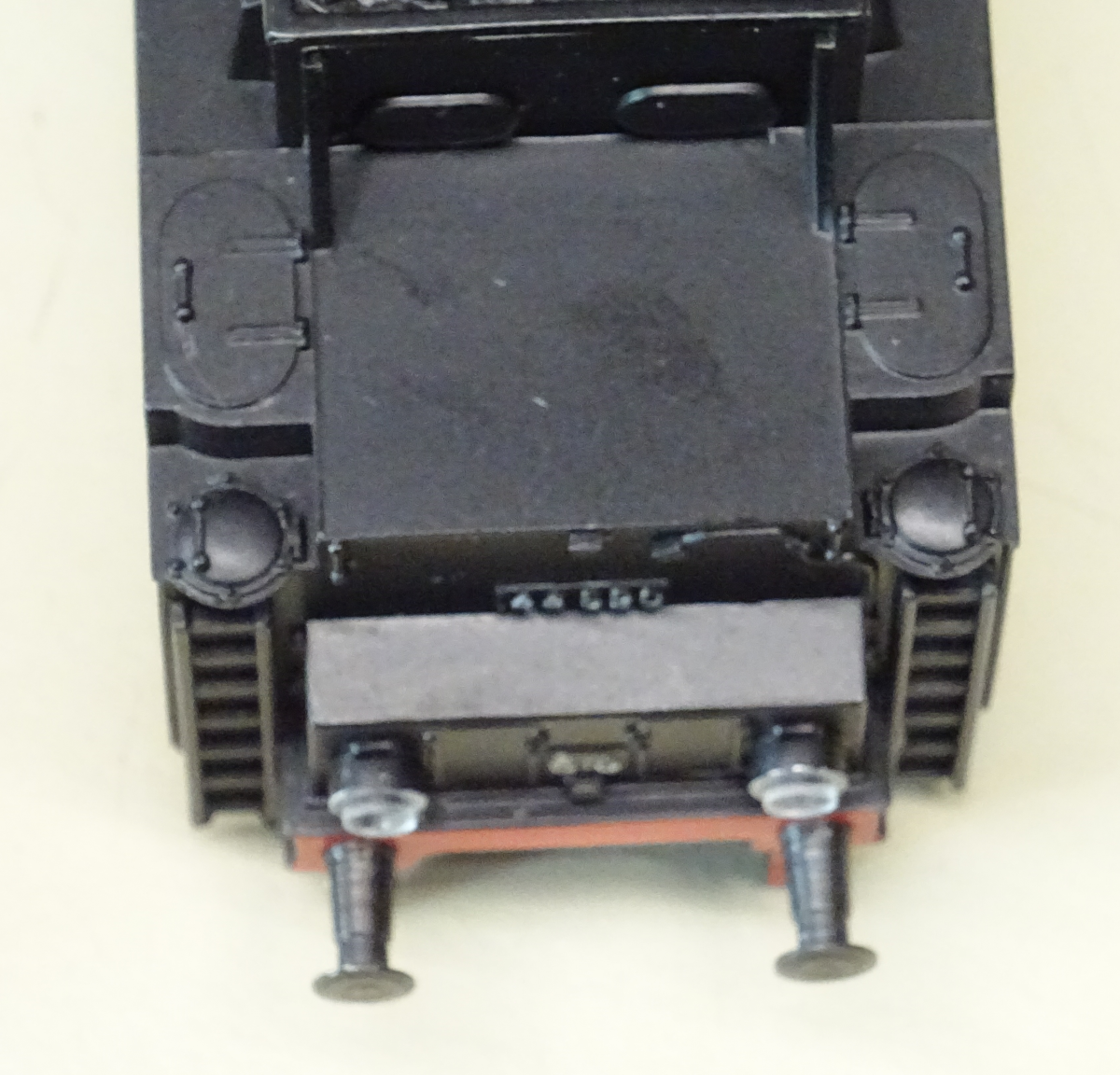

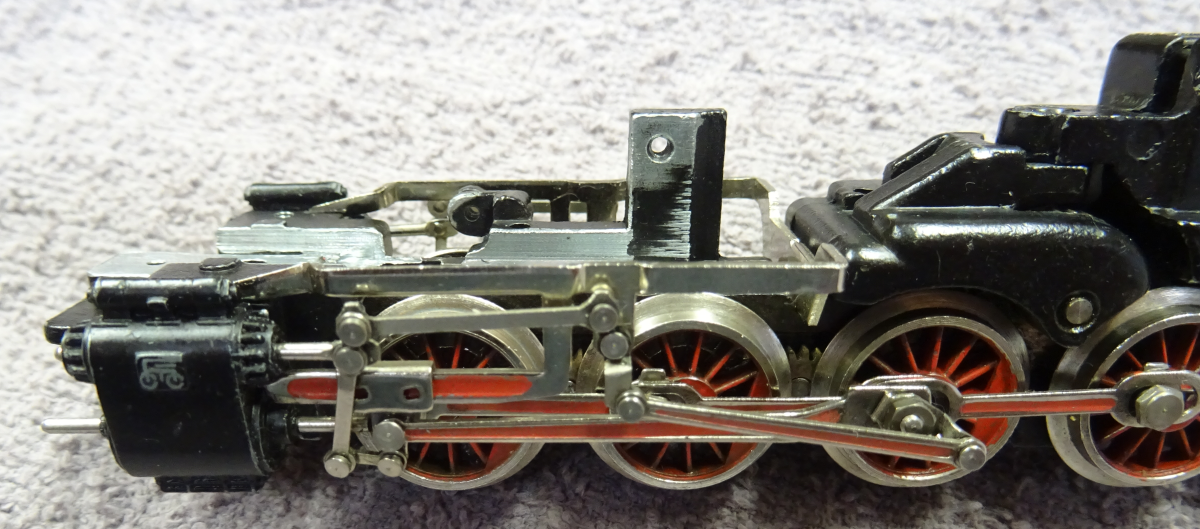

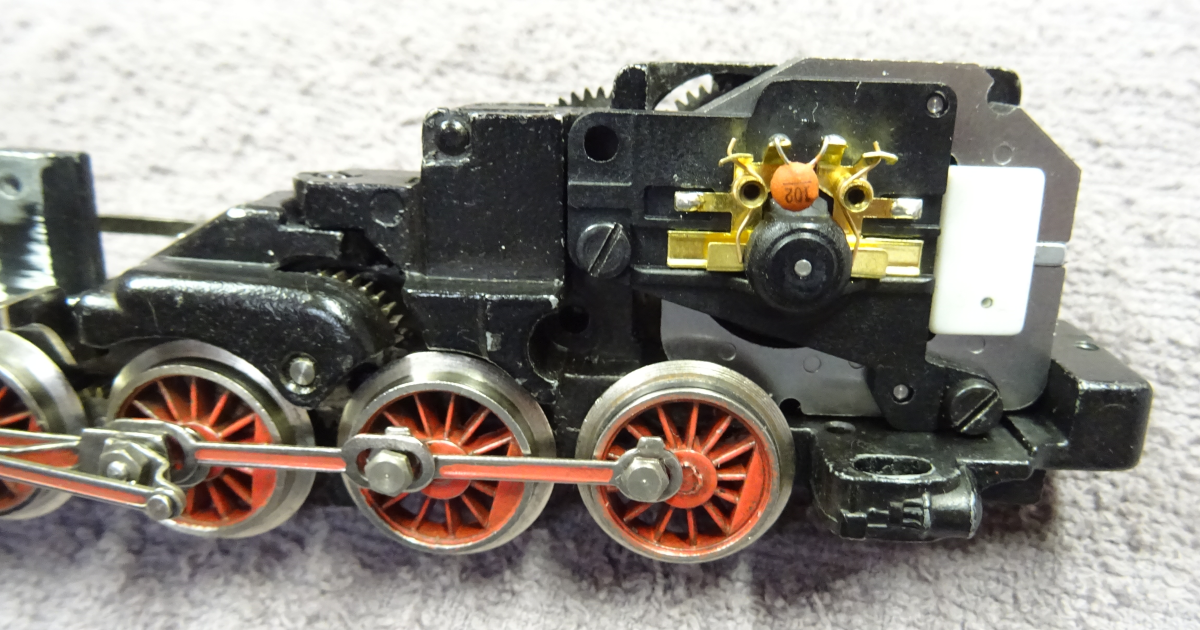

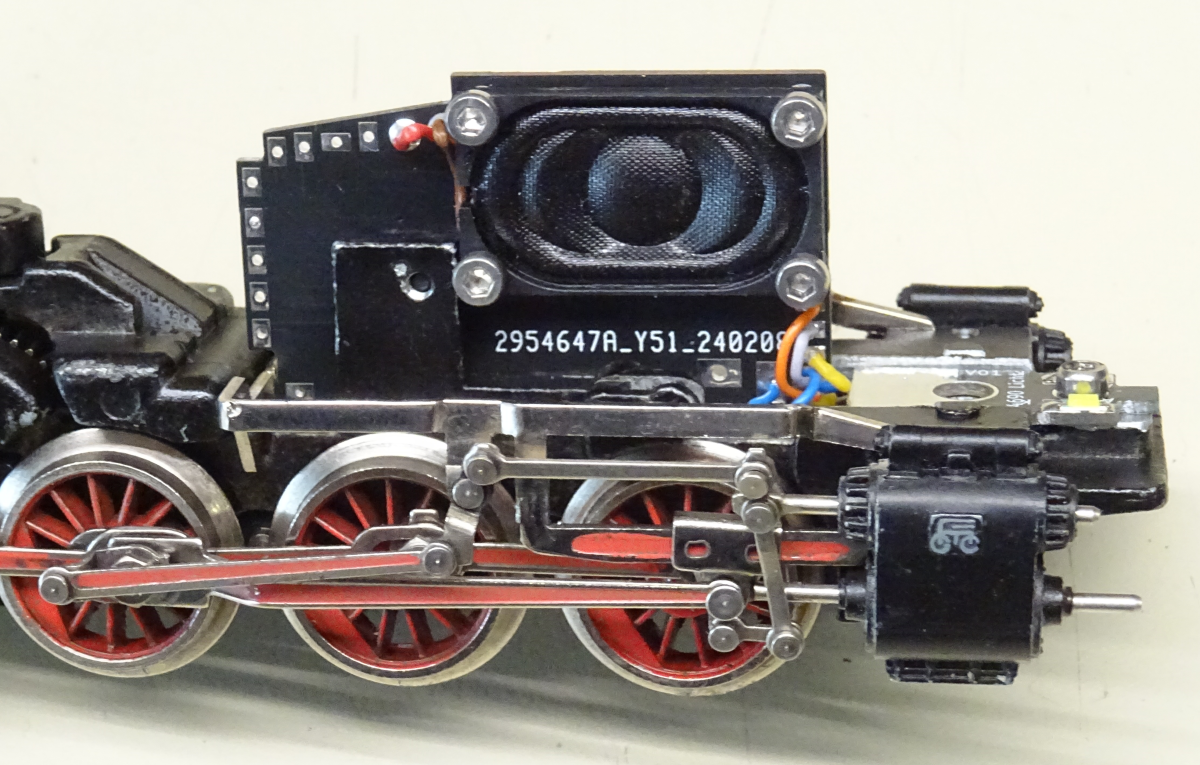

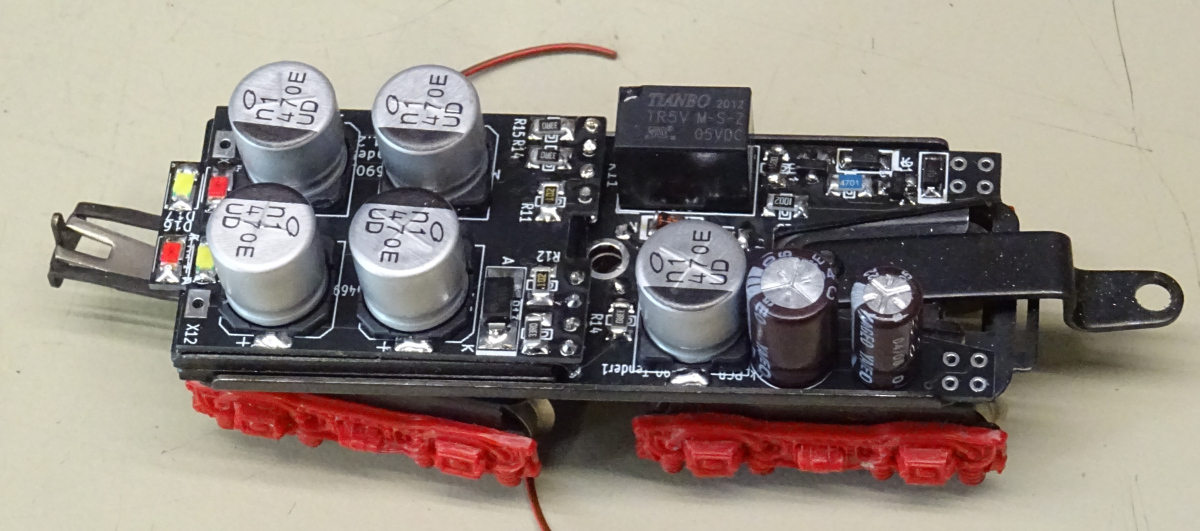

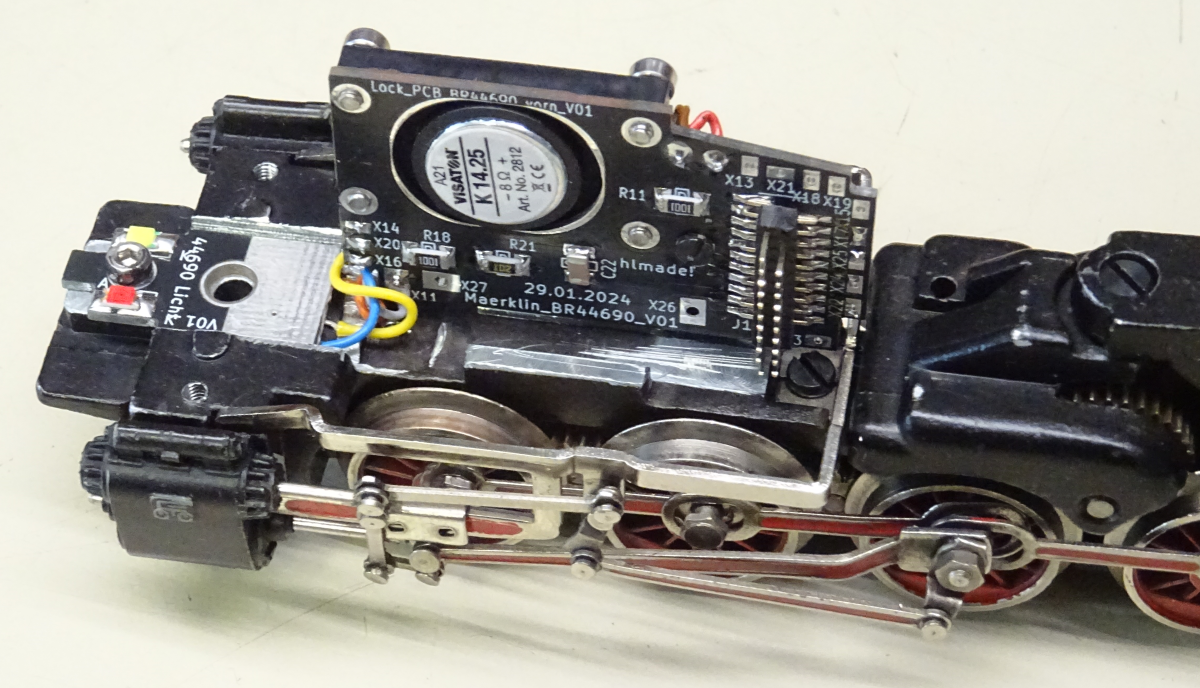

Digitalumbau Märklin Lok BR44690 mit Lockplatine "Maerklin_BR44690_V01"



Funktionen: Märklin Hochleistungsmotor, LED Licht, optional rotes Schlusslicht, Sound, Pufferfunktion, Führerstandsbeleuchtung, Rauch, Telexkupplung

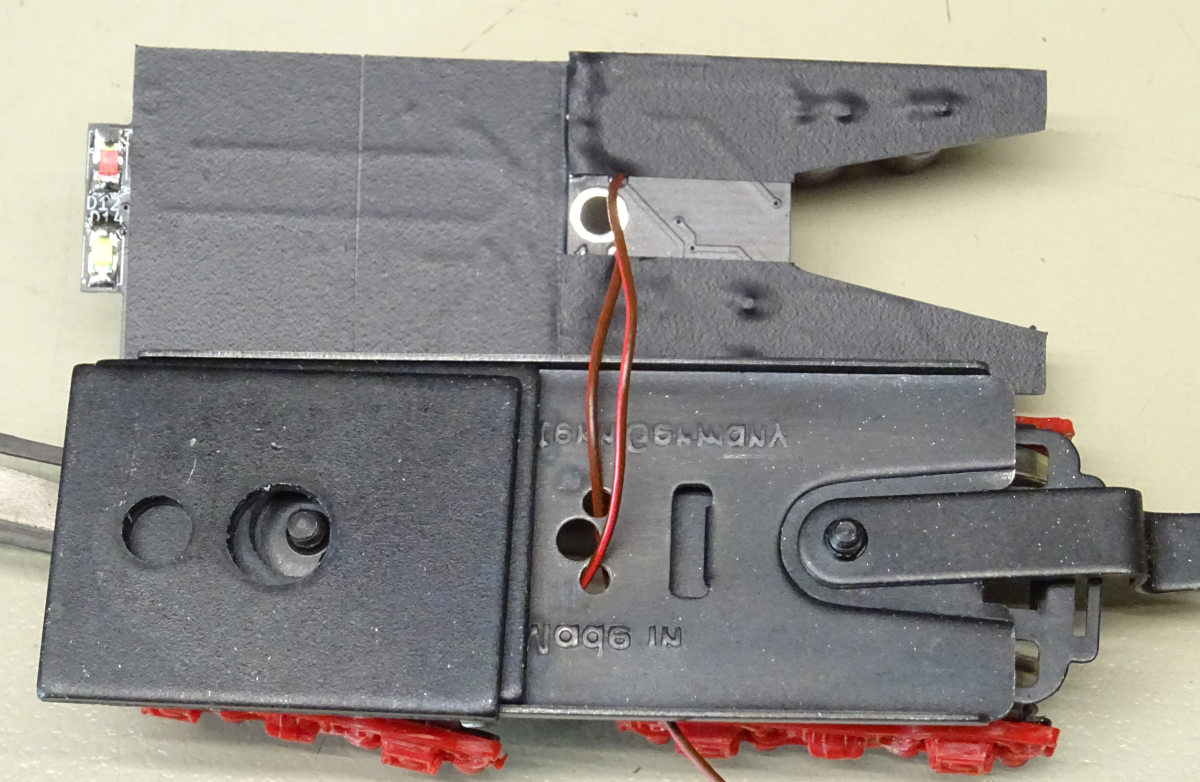

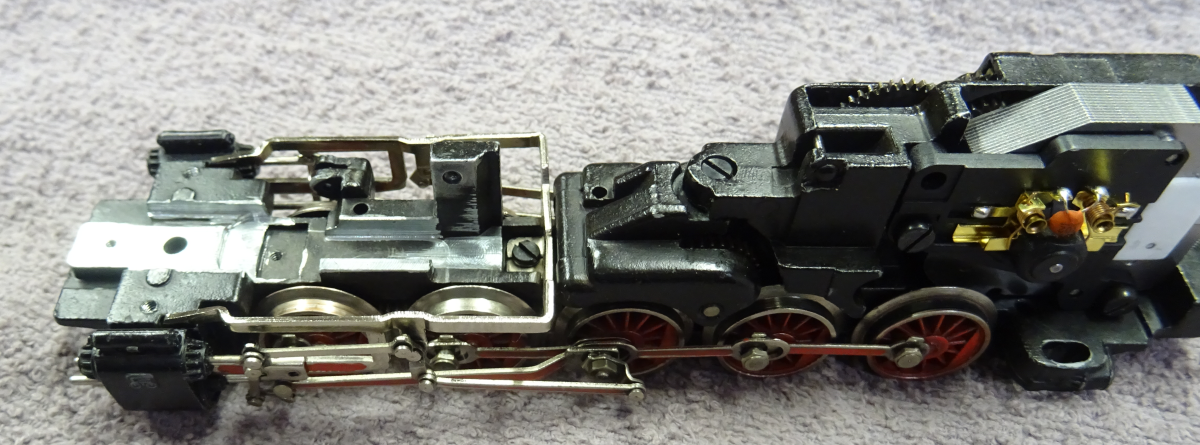

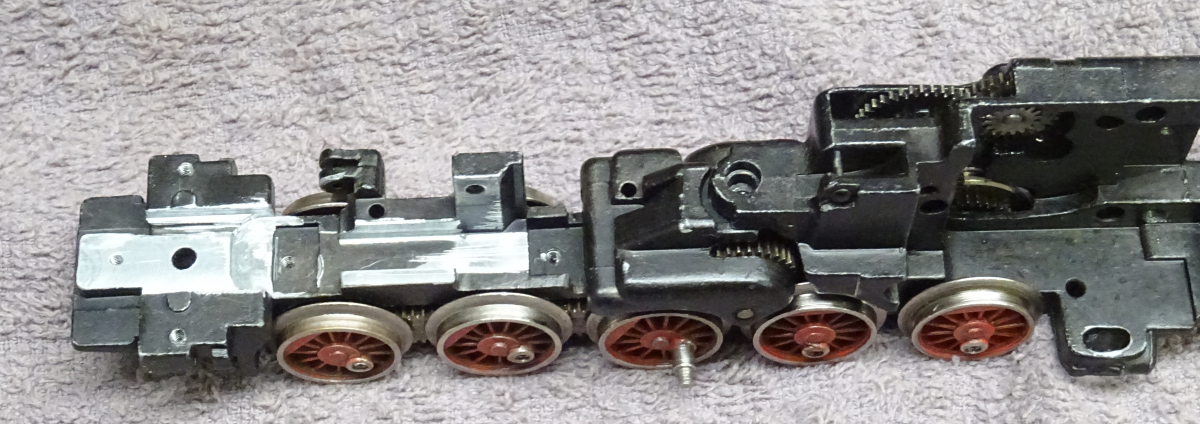

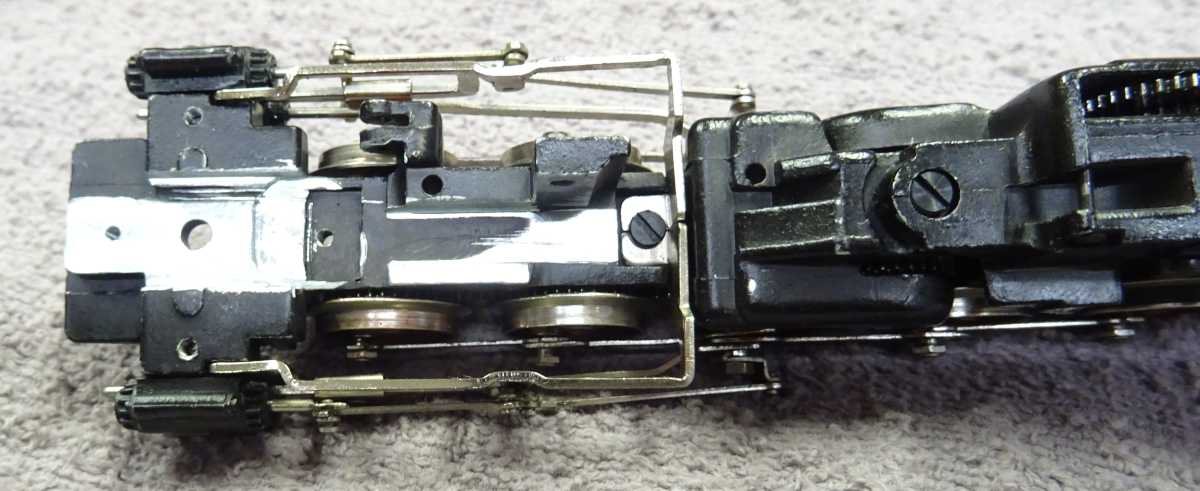

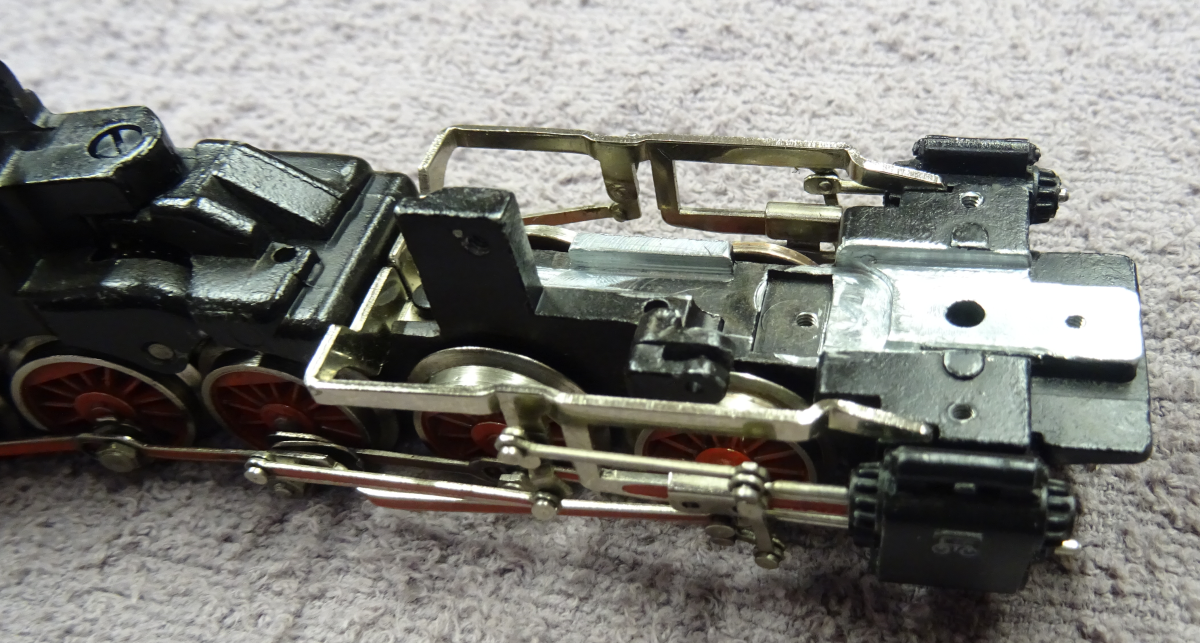

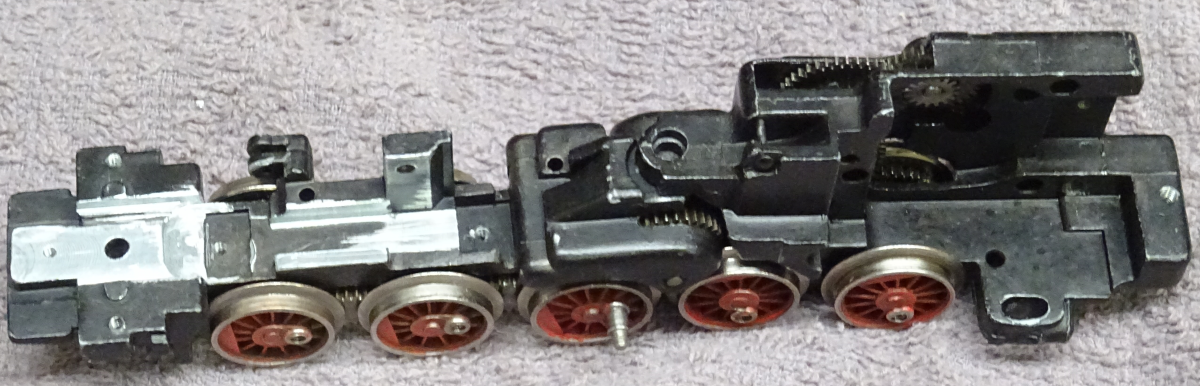

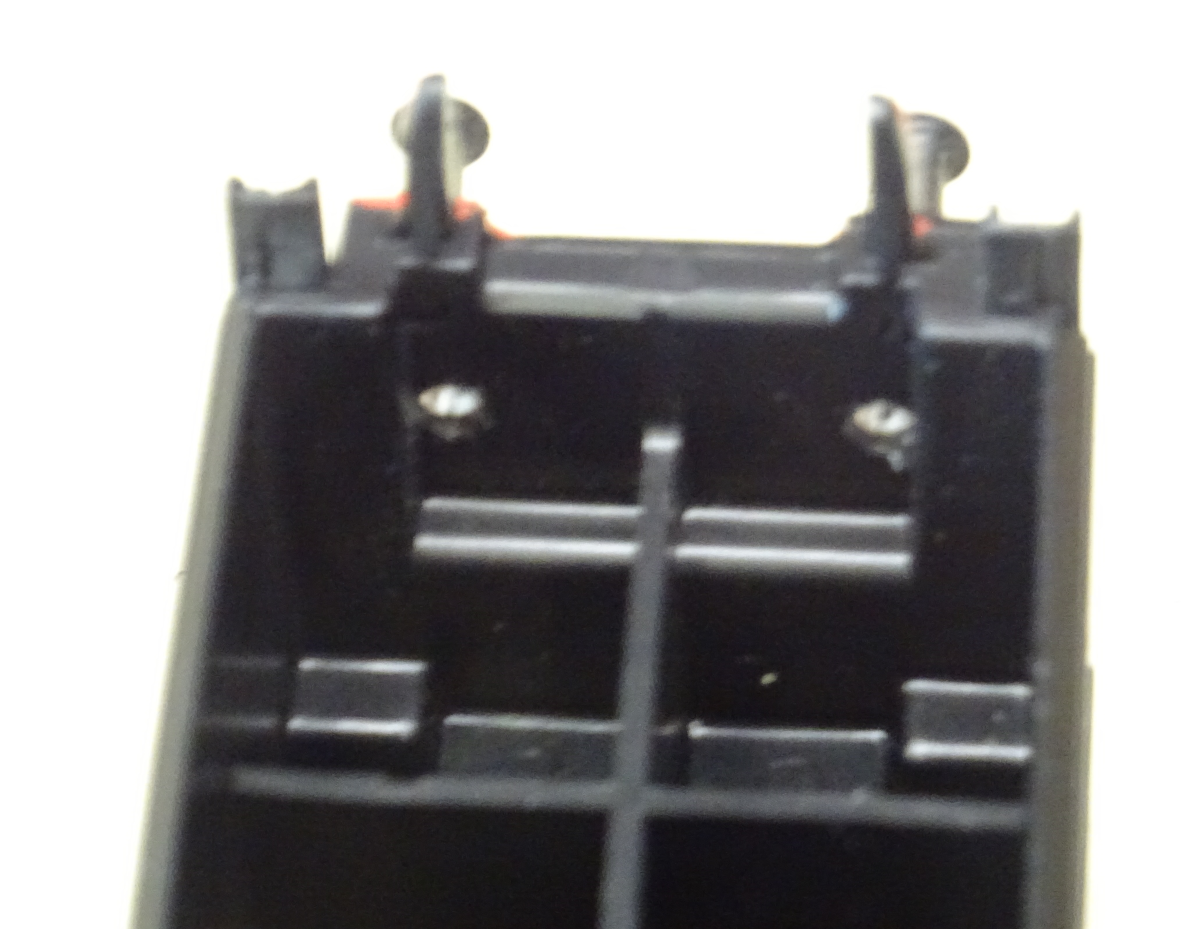

Bemerkung: Sehr aufwendiger Umbau weil wenig Platz. Zum Einbau der Lockplatine sind Frässarbeiten nötig! Ergebnis sehr gut!


Schaltplan: Schaltplan_Maerklin_BR44690_V01.pdf
Schaltplan_Maerklin_BR44690_Licht_V01.pdf
Schaltplan_Maerklin_BR44690_Motor_V01.pdf
Schaltplan_Maerklin_BR44690_Tender1_V01.pdf
Schaltplan_Maerklin_BR44690_Tender2_V01.pdf
kein Bild

Bestückliste: ibom_Maerklin_BR44690_V01.html
ibom_Maerklin_BR44690_Licht_V01.html
ibom_Maerklin_BR44690_Motor_V01.html
ibom_Maerklin_BR44690_Tender1_V01.html
ibom_Maerklin_BR44690_Tender2_V01.html
kein Bild

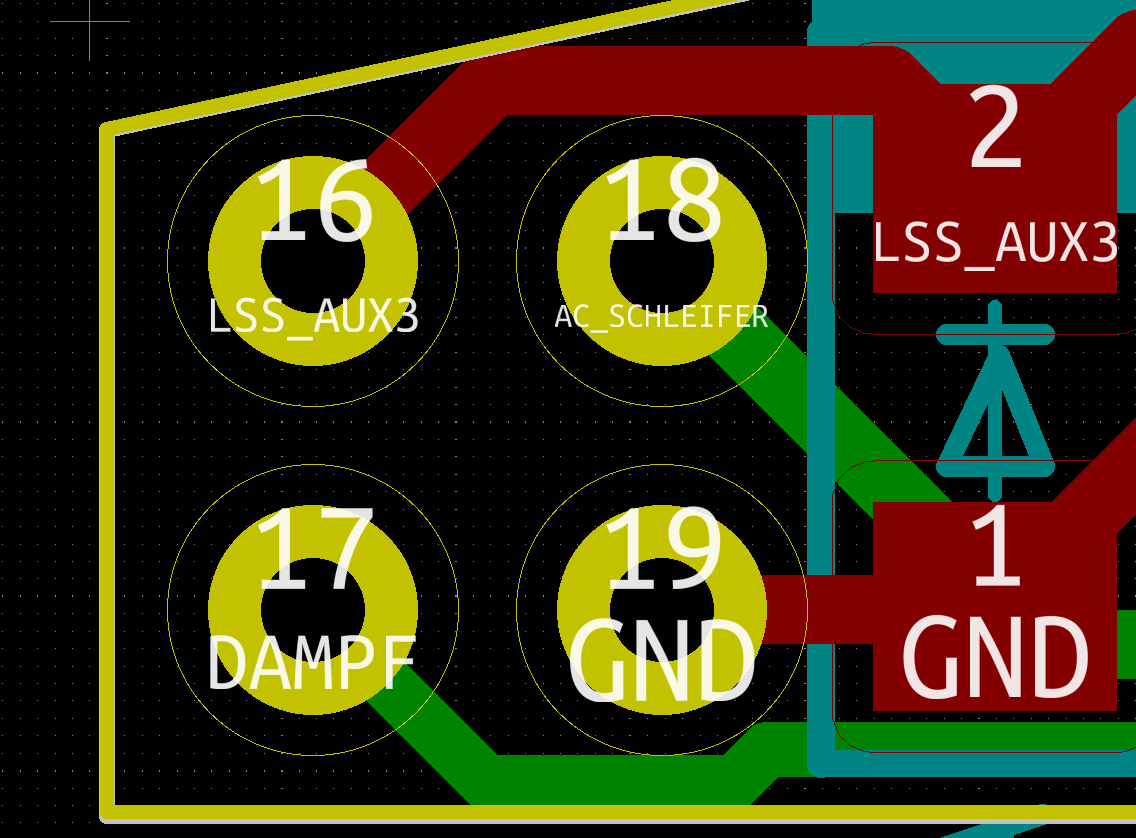

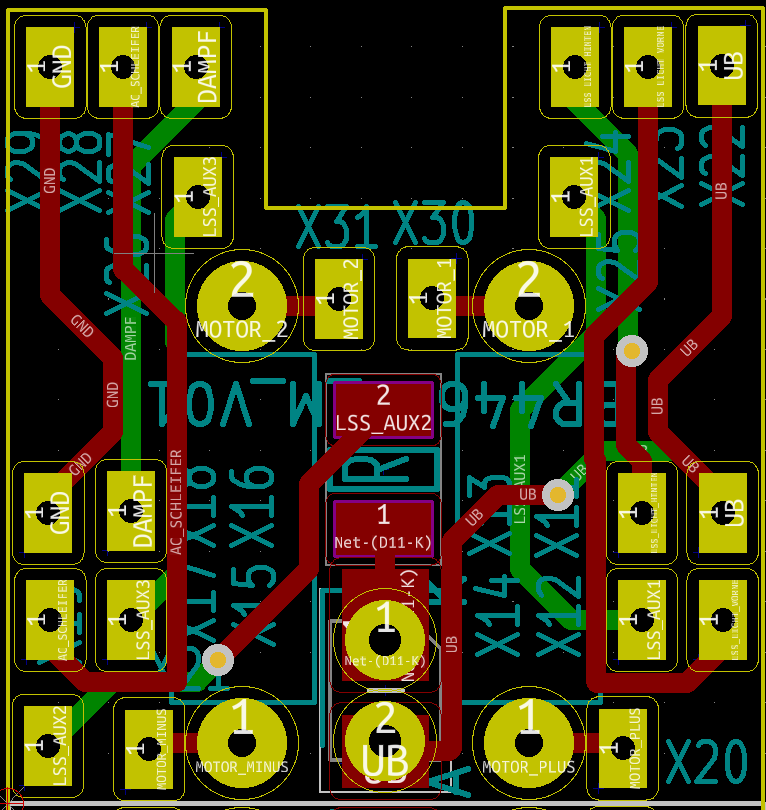

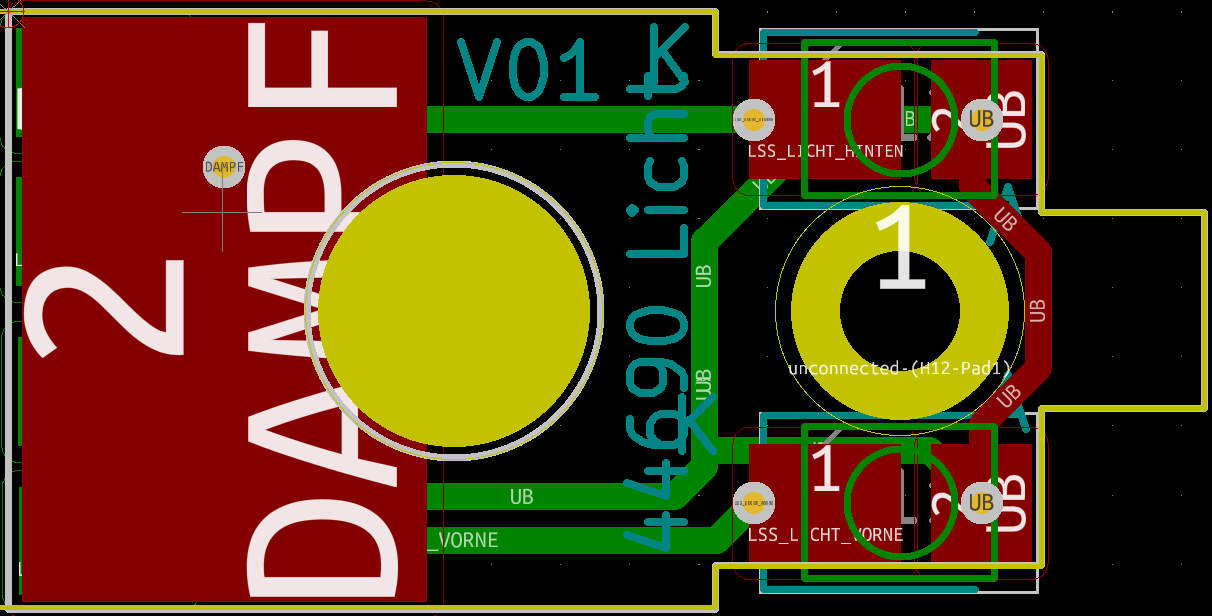

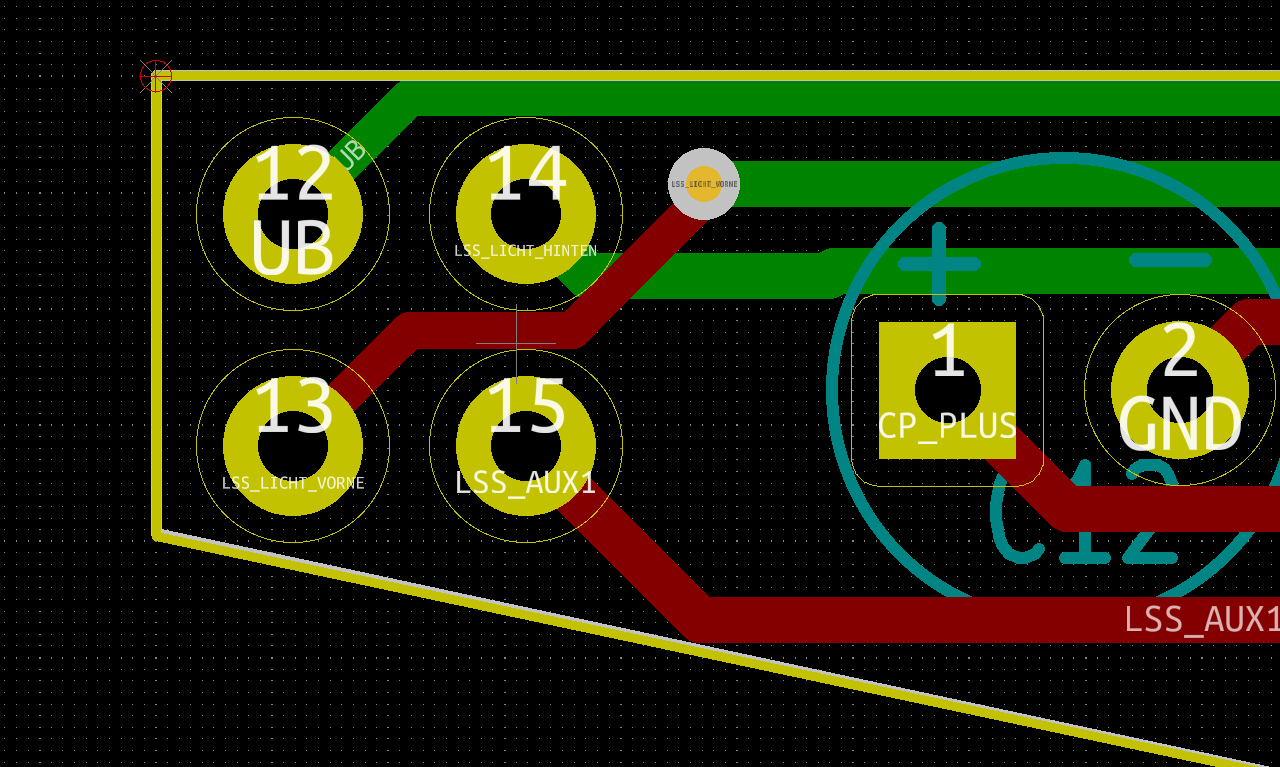

Layout: Layout_Maerklin_BR44690_Licht_V01.png
